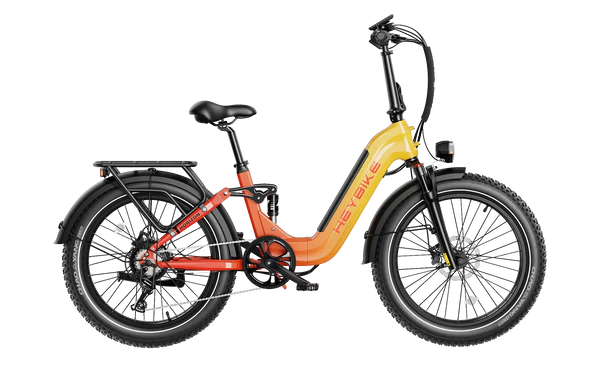

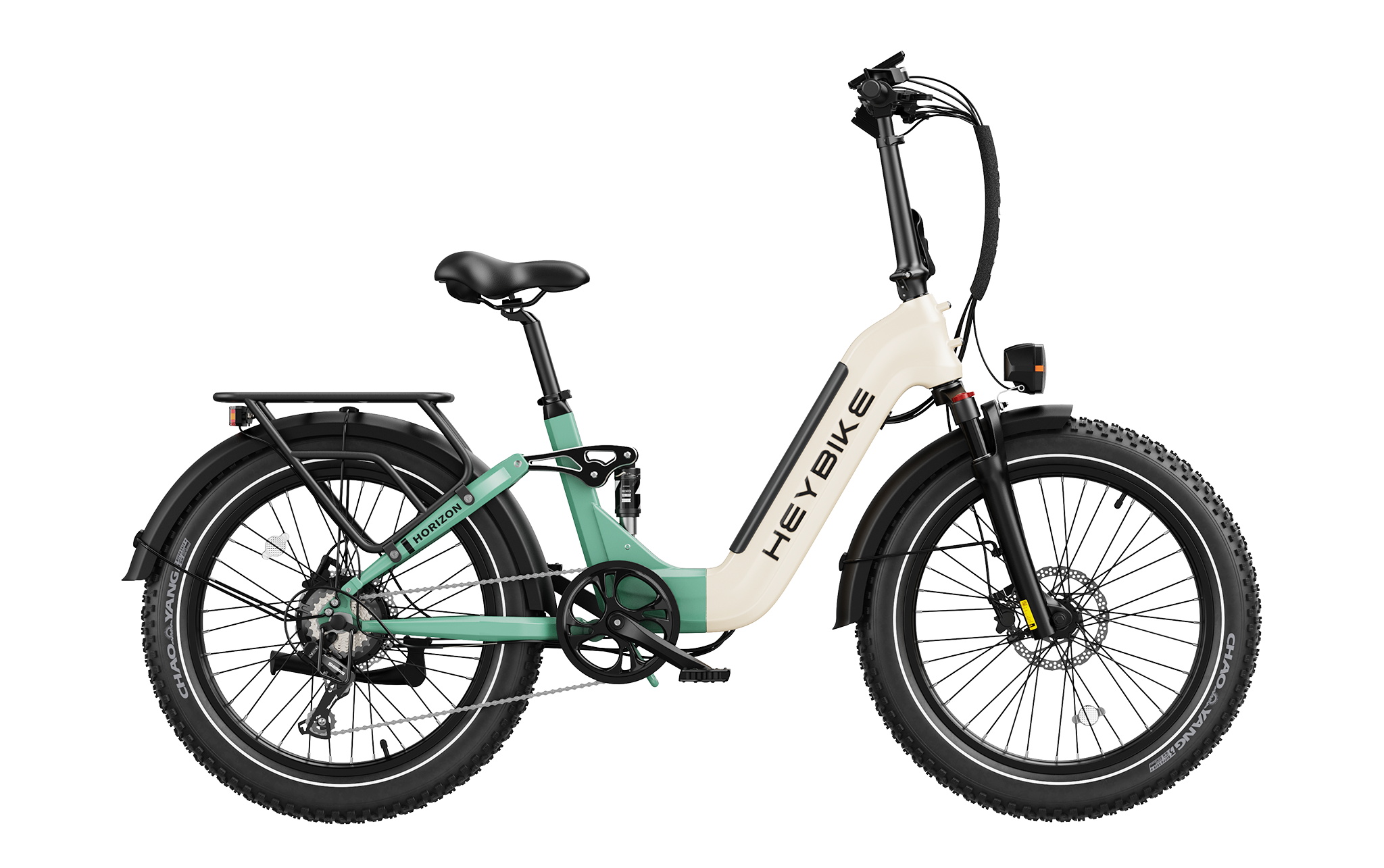

Why Horizon?

Inspired by the spectacular scenery of the foreshore sunset, our designer portrays a stunning bike frame with a gradient color, symbolizing every rider's limitless potential and innovative spirit. With a full suspension system, hydraulic disc brakes, and 24×4" fat tires, Horizon enables you to ride comfortably and efficiently. Enjoy riding with it and push your limits!

Rider Review

Load video:

The End Is Near! Collar Tied Rafters, Eave Overhangs, Windows, & Gable Sheathing DONE!

Simple Life Reclaimed

Load video:

Heybike Horizon: 24x4 Fat Tires with Dual Suspension

CitizenCycle

Load video:

This Limited Edition has EVERYTHING you can ask for in an eBike

Kirk kreifels

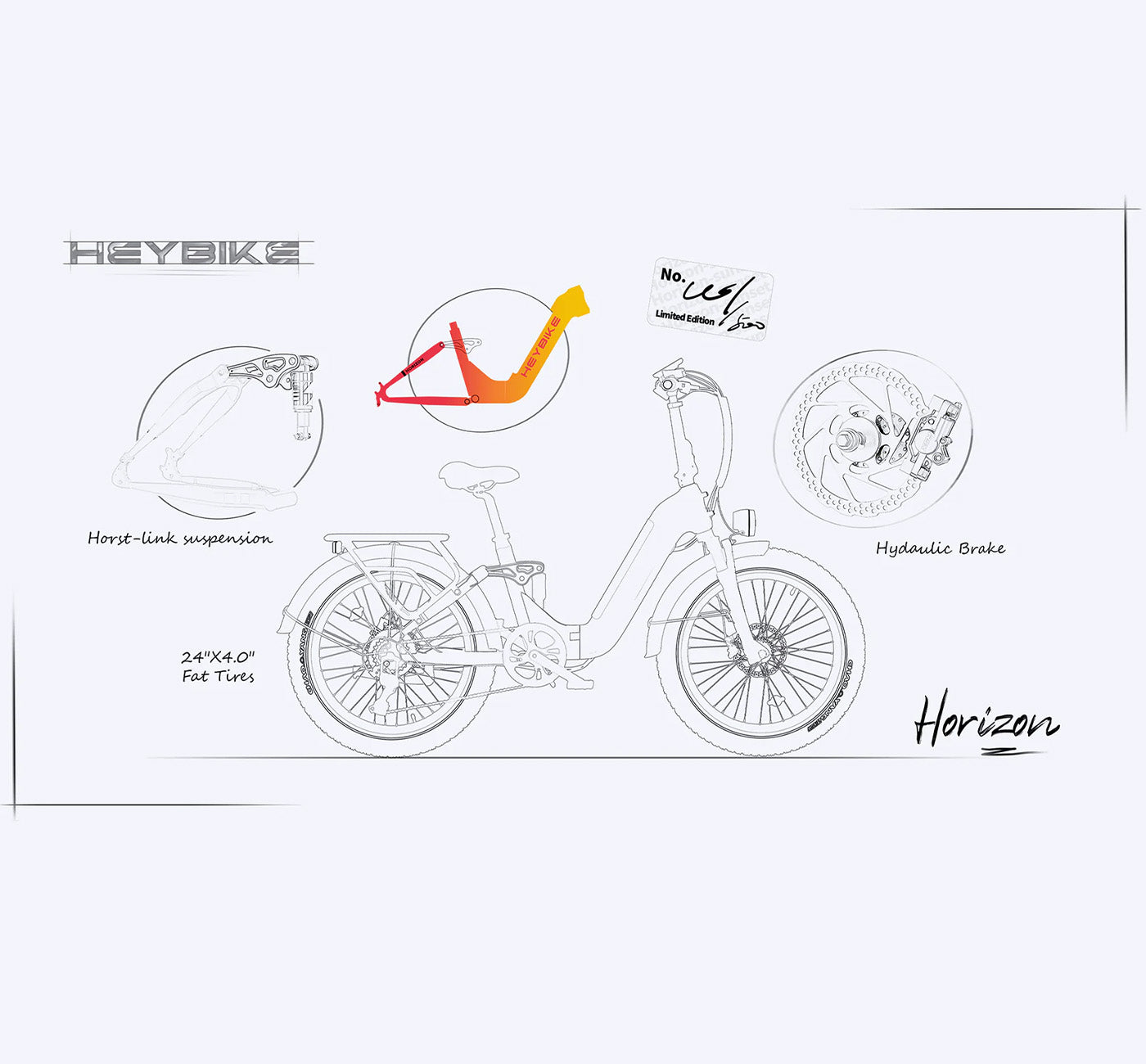

Limited-edition Design

More than 150 designs were drafted for Horizon's appearance. The sunset color design stood out in market research. There are only 500 bikes for sale. Hurry up and get a limited-edition ebike!

Only 500 Bikes For Sale

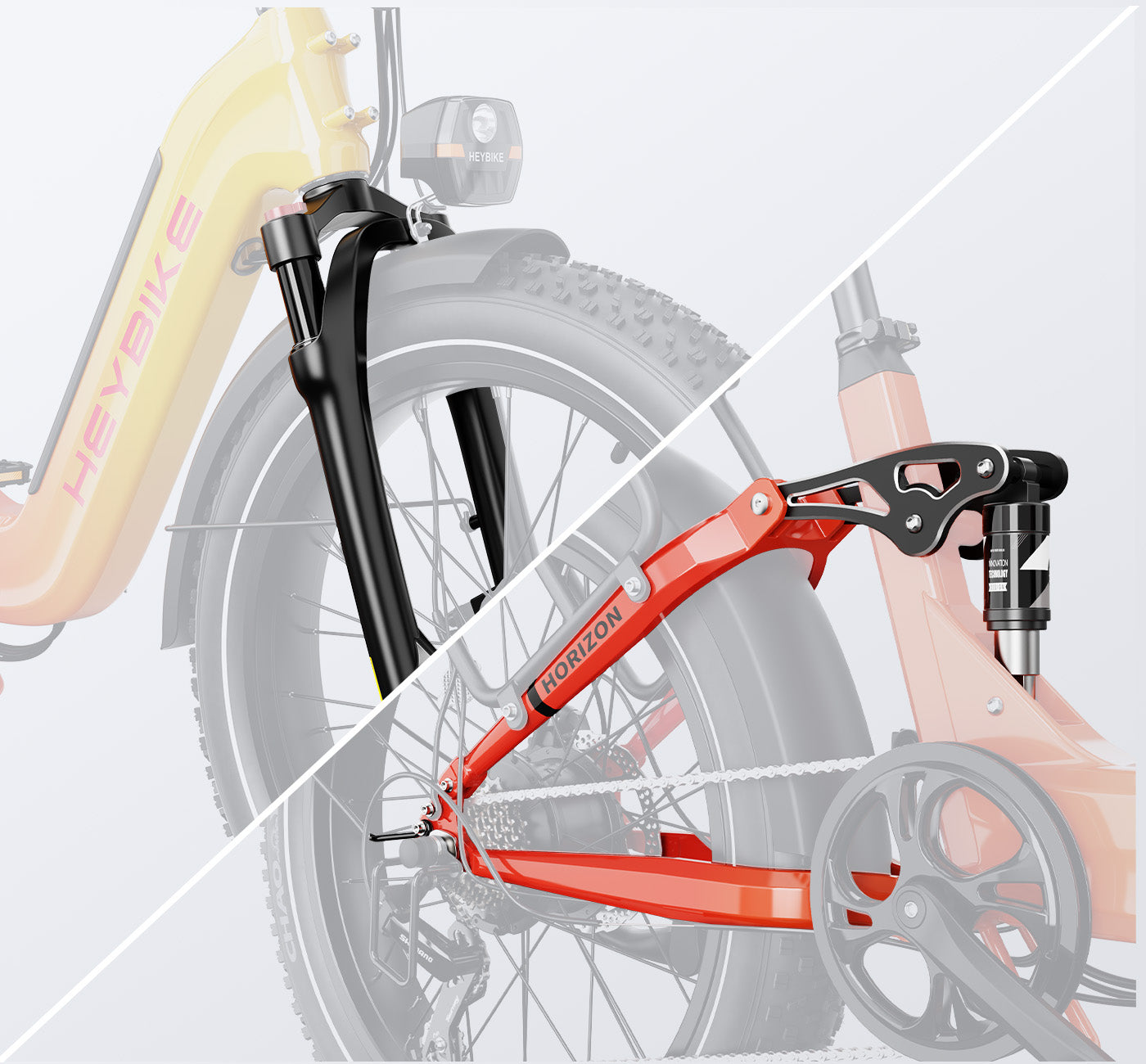

Full Suspension

Along with the front suspension, the horst-link suspension makes up Horizon’s full suspension system, which greatly reduces bump on uneven surfaces

Hydraulic Front Suspension For Superior Control

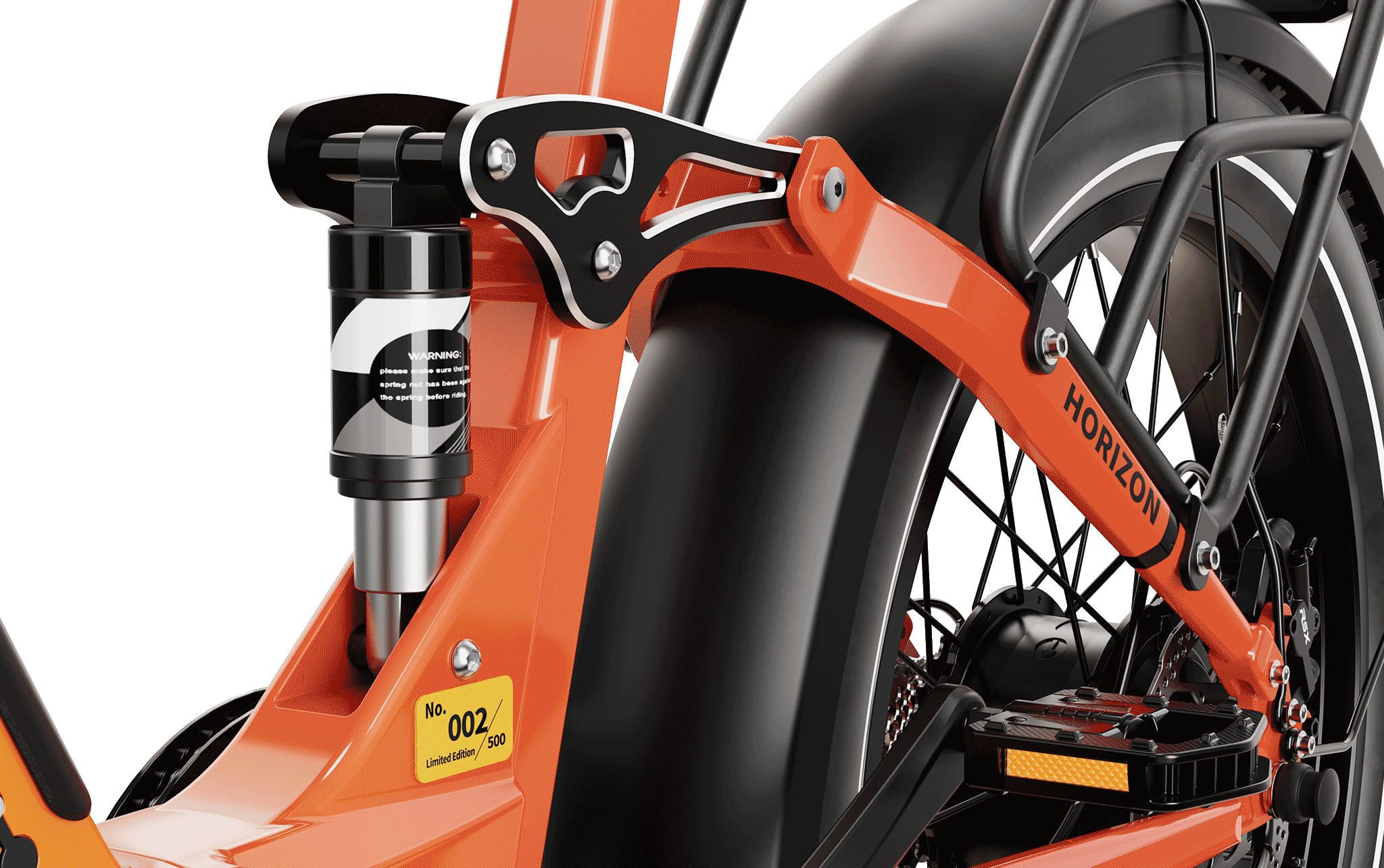

Horst-link Suspension For Reduced Shock

Discover Horizon

24"x4" Fat Tires

Two fat tires provide unparalleled traction. Say goodbye to skidding and slipping; Embrace a smooth and comfortable journey.

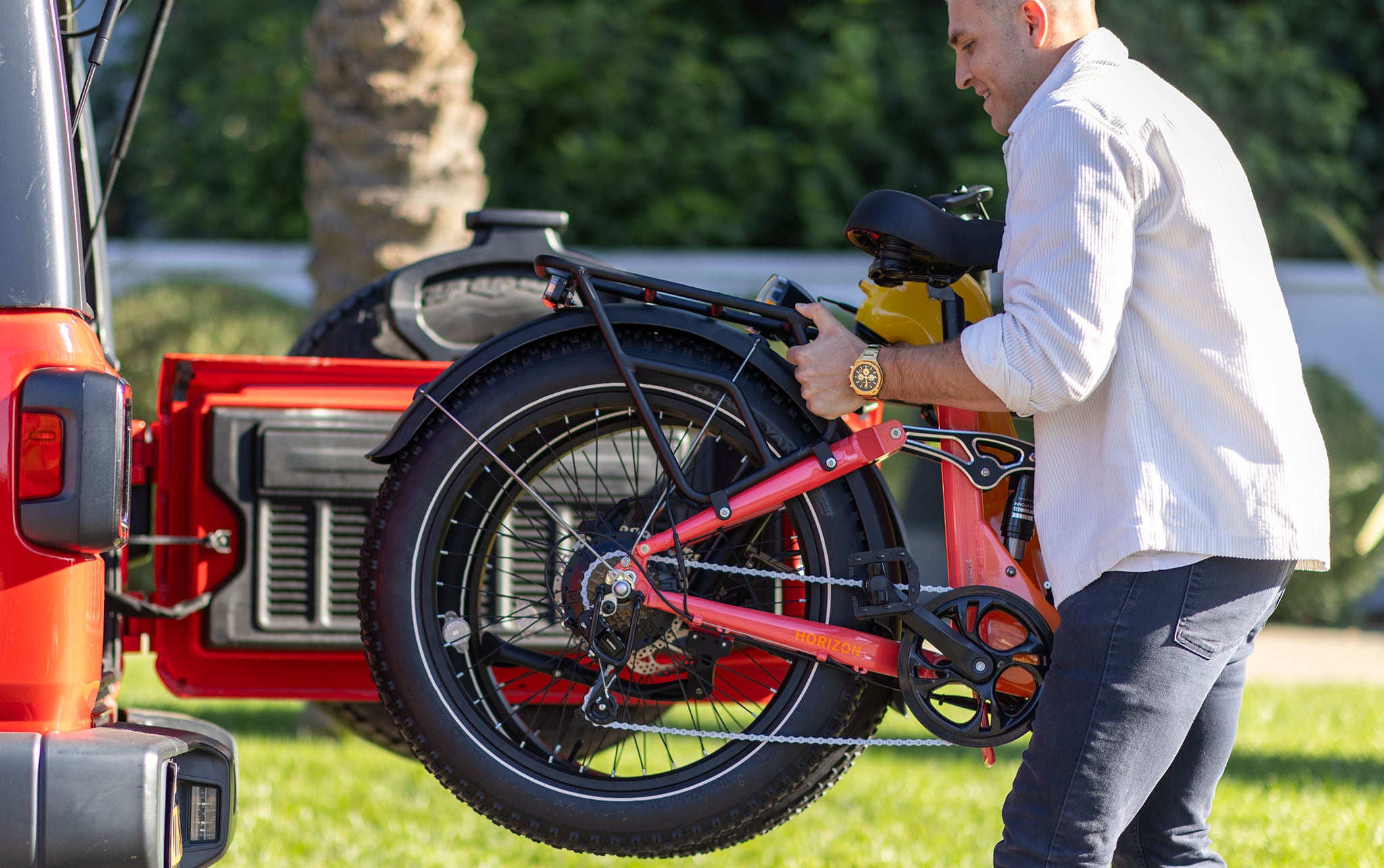

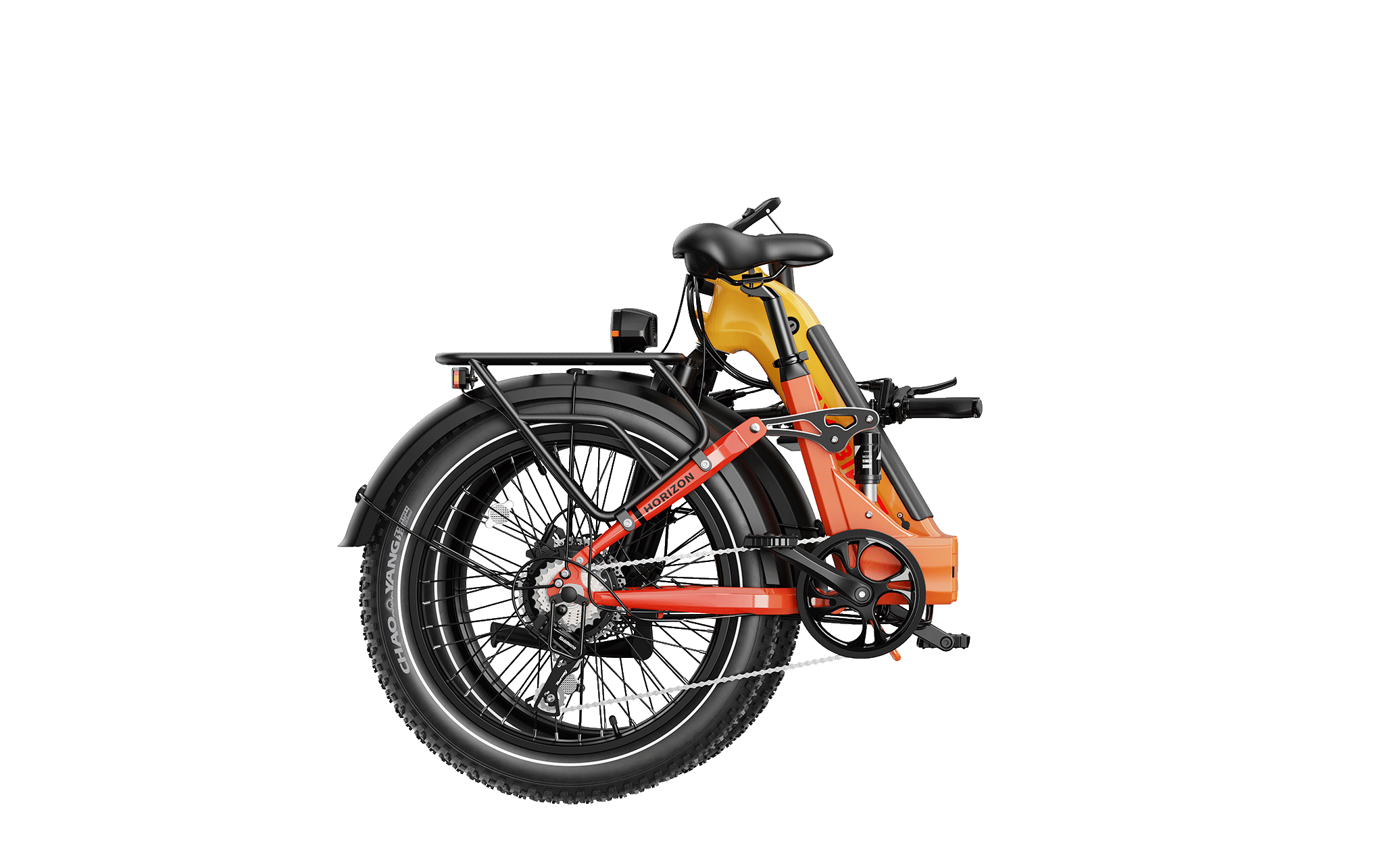

Compact Folding Design

Simply fold it, store it, and unfold the bike to hit the streets or go off-road when you are ready to ride.

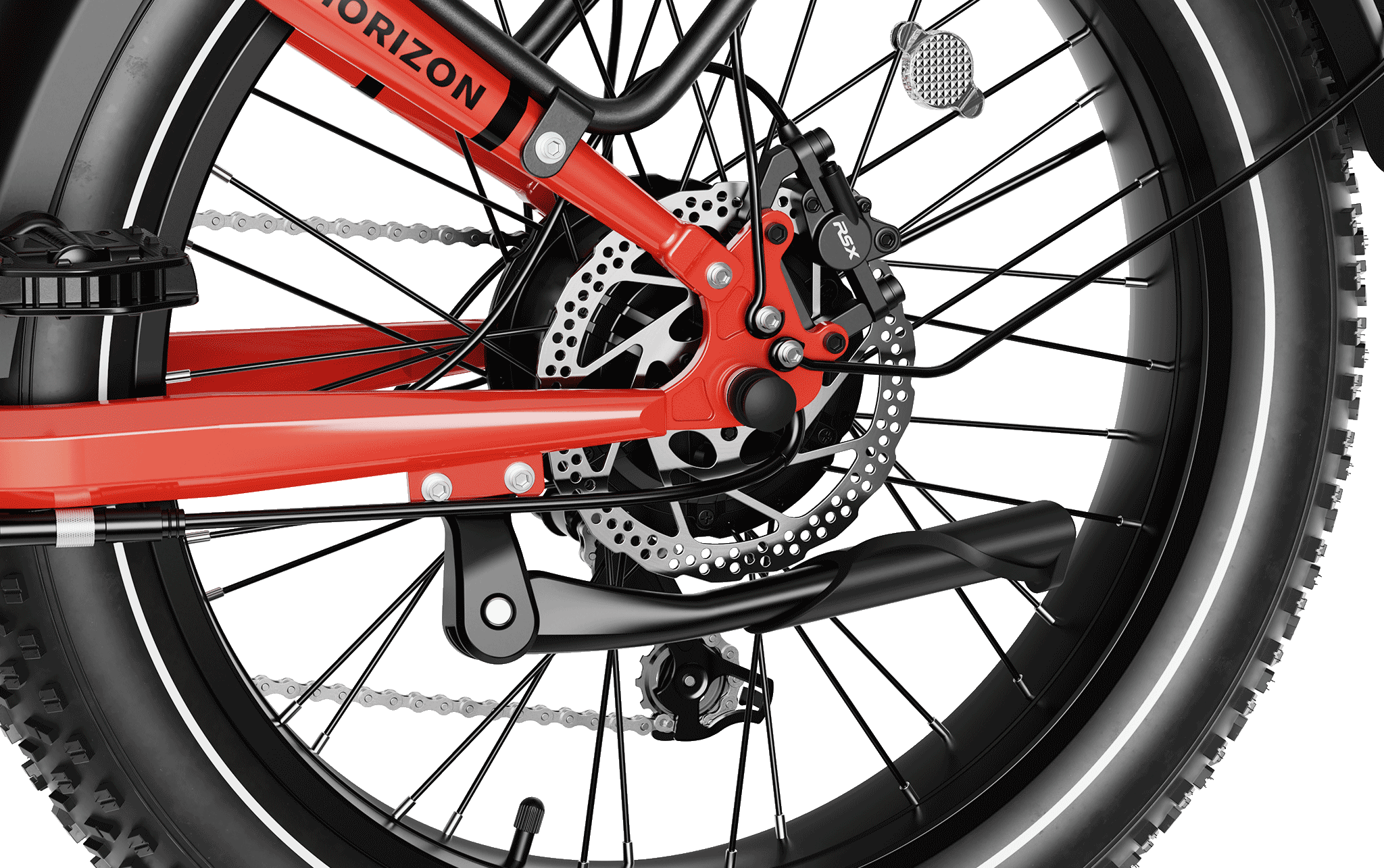

Hydraulic Disc Brakes

The advanced hydraulic disc brakes provide reliable braking power for enhanced safety and control during your rides.

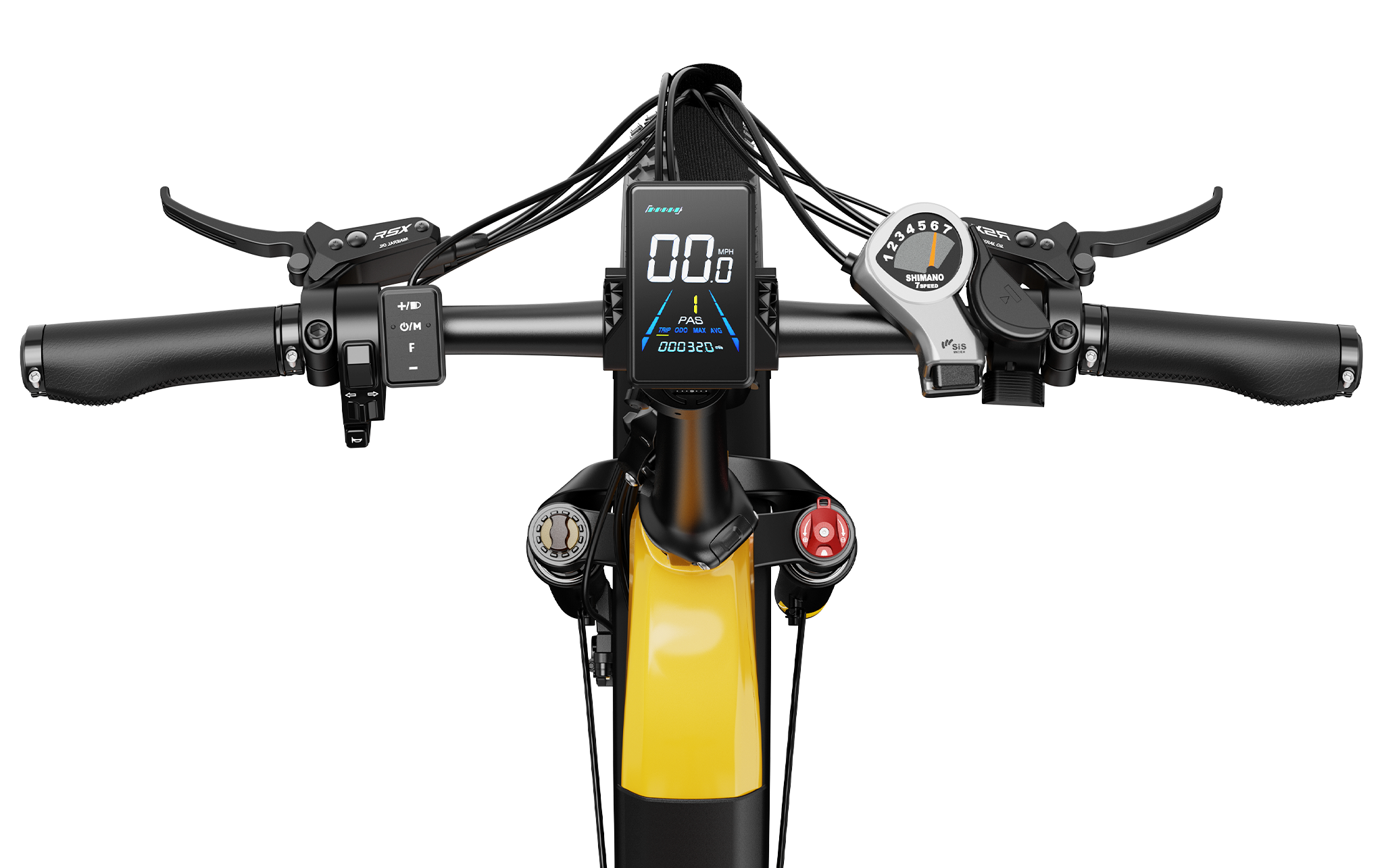

Shimano 7-speed Gear Shift System

Horizon features a Shimano 7-speed gear shift system, offering versatile and precise gear shifting for a smooth and efficient ride. Find the speed that matches your journey!

App Connection

Connect your bike with the Heybike smart app for convenient control of the bike. The App also provides more personalized bike’s settings.

Spec&Size

Frameset
Frame

Aluminum Alloy, removable lithium-ion battery, rear rack included, fender mounts, front & rear mount mechanical disc, kickstand mount

Full Suspension

Horst-link suspension and hydraulic front suspension

Wheels

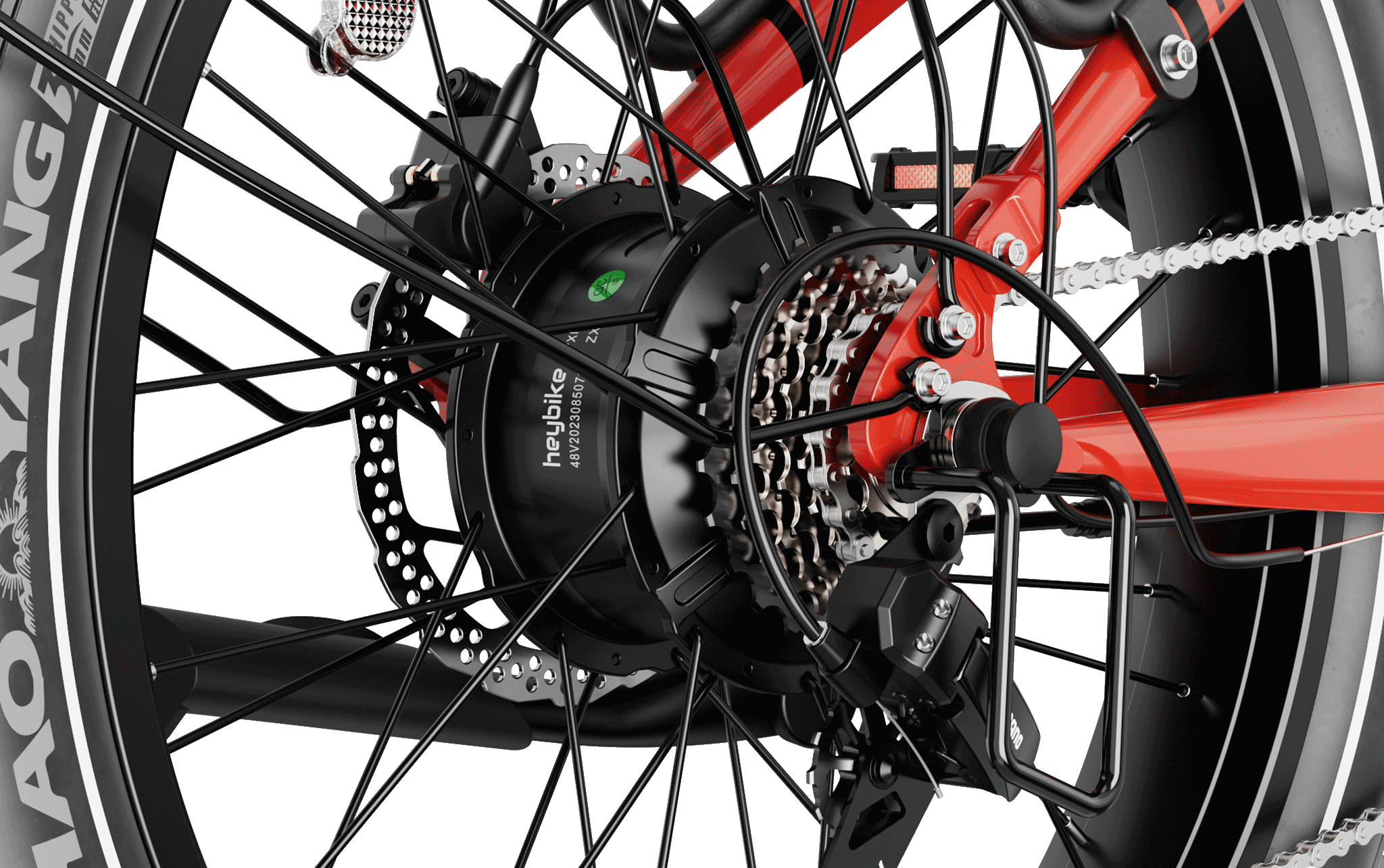

Hub rear

Brushless geared hub motor, 80Nm, 1400W

Spokes

Aluminum alloy

Tire

Puncture protection, 24"x4.0"-max tire size without fenders

E-system & Drivetrain
Battery

692Wh, removable lithium-ion battery

Charger

4A, 54.6V output, 100V-220V AC input

Display Type

LCD Display

Rear Derailleur

Shimano 7 speed

Accessories
Light

LED headlight with auto-on feature, and integrated taillight with brake light.

Kickstand

Alloy

Weight & Dimensions
Weight

36 kg / 79.4 lbs

Weight limit

Maximum total weight limit (combined weight of rider and cargo) of 330 pounds (149.7kg).

Folded Dimensions

49.2*23.6*31.5 inch

Unfolded Dimensions

75.6*24.4*46.5 inch

What's In The Box

  • Horizon

  • Charger

  • User Manual

  • Toolkit Box

  • Keys

  • Gift Box

FAQs - Horizon

What is a full-suspension electric bike?

A full suspension ebike has front suspension in the fork as well as rear suspension (often referred to as a shock) whereas hardtail ebikes only have a front suspension fork. Full suspension ebikes are better suited to rough, technical, and often steep downhill terrain.
Full suspension improves comfort, traction, and control over gnarlier terrain, creating a more enjoyable riding experience.

Does full suspension make a difference?

You’ll benefit from a full suspension ebike if you:
Intend to ride really technical terrain: extra suspension improves how easily the bike can move over rougher trails and singletrack. They’re more forgiving of rider errors when it comes to choosing lines compared to a hardtail.
Want a more comfortable bike: as mentioned above, a full-suspension mountain bike gives much more comfort thanks to the rear shock. If the riding you’ll do isn’t so technical, but you know you want more comfort, you’ll be right at home on a full-sus ebikes.
Need to carry more speed: full-suspension bikes absorb the lumps and bumps better than a hardtail allowing you to carry more speed through technical sections of trail.

Why are full-suspension bikes more expensive?

Full-suspension bikes are more expensive due to the cost of extra moving parts. The addition of a second suspension component all adds up. Investment in the development of kinematics (the geometry of motion) has also transformed the design of ebikes. You no longer need to be concerned that a full-suspension mountain bike will slow you down, instead, you can benefit from a balance of comfort, traction, and pedaling performance.

Does it have any accessory mounts (kickstand, racks, fenders)?

Horizon comes equipped with a kickstand and there are mounts to install fenders and a rear (they are included with the bike).

Customer Reviews

Based on 104 reviews
72%
(75)
21%
(22)
4%
(4)
2%
(2)
1%
(1)
J
James

I love it, better than I thought it would be by far

M
Mike R
Nice bikes but a few improvements would be nice

I purchased 2 of these bikes at the same time, arrived same day. One bike was perfect, no adjustments needed. The other one had some issues with the rear brake and front forks that needed some repairs and adjustment by some bike shops and while still not perfect it’s good enough. I wish they were both perfect.

We have 2 other high price e-bikes (Pedego) which we love but when friends visited we wanted to have guest bikes for them to ride. They have worked well for that purpose but truth be told I like riding these bikes as much or more than the expensive bikes. I really appreciate the full suspension more than any other feature of this bike. Not sure I would ever buy another bike without it. These are powerful bikes and pull hard when the electrics kick in. Plenty of power for any hill and bigger guys. They ride very nicely and are secure and stable even on gravel roads. Controls, lights and displays are all excellent. Paint jobs are very nice and these are sturdy bikes there is no flexing of the frame even with the folding mechanism.

Some improvements I’d love to see:
- bigger battery, at level 3 (approximately 15 mph) with active of peddle power added by the rider you will start having range anxiety at around 30 miles. You’ll see the battery level stay at 2 bars when stopped and sometimes dip to 1 during a big uphill push. Obviously there is still power there and you can get more miles but you’ll want to be getting close to home for a recharge. I never ran out on a ride but I also keep my ride plans to 35 miles as I don’t know exactly when it goes to zero and when you get into the 35 mile range the bike does slow a bit but still usable and fun. I would like to see an extended range battery offered.
- smoother take off at low speeds when the motor kicks in would be nice. As is when you are going slowly to turn a tight corner you want both hands on the steering or the bike feels like it could get away from you.
- the app: it’s not great and it seems like the app needs to be connected to the bike for the custom levels to be in effect of they do work. I tried to have each of the 5 levels match the range of my other e-bikes 5 levels and could never make that work. Also you need the app to unlock going 28 mph and I’ve never been able to get the bikes going that fast. Seems they are stuck at something more like 20-22 mph. Maybe it’s on me not being able to figure things out. Fortunately the default levels make for a nice ride and 20 mph is fast enough for my needs. I don’t find the app to be worth it to deal with its glitches which caused me more frustration than the benefits seemed worth. Maybe you’ll have better luck…or maybe it’s improved or will in time. I have not be in the app in maybe 9 months and when I asked for help the company said the app was in beta…
-seats could be better, we swapped out for cloud 9
-the baskets and very heavy, especially the front basket seems like it would add a unnecessary weight in a less than ideal position. Would be nice to have them made from aluminum.

E
Elizabeth Alden
Love it!!

So much fun to ride

W
Walter Tuszynski
Great bike!!

Can’t wait to ride it daily.

C
Calvin Rogers
Bike LOOK great

Have not been able to ride it broken controller
